# Get Data

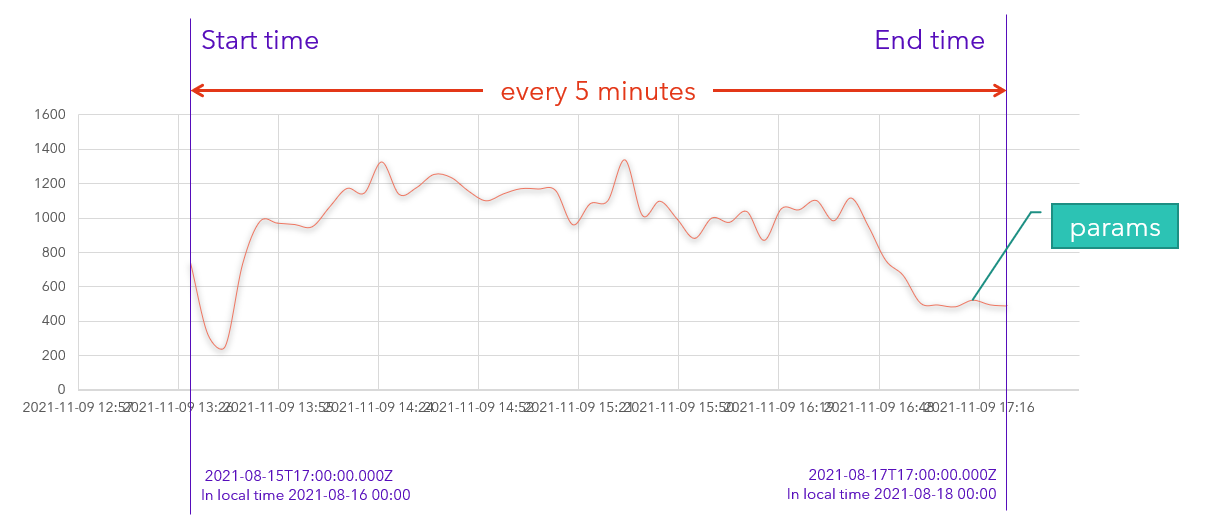

# The Raw Data

rawdata

This endpoint retrieves the raw data of the device that the API token owner has access and supported measurement sets of devices.

# HTTP Request

GET {url}/data/raw?startTime={startTime}&endTime={endTime}&deviceId={device_ids}&params={params}

# Request Headers

Key	Value
x-language	en
Authorization	Bearer `{YOUR_API_TOKEN_HERE}`

# Request Params

Parameter	Required	Type	Description
startTime	YES	datetime	Initial DateTime (UTC) for collecting the data
endTime	NO	datetime	Final DateTime (UTC) for collecting the data. The maximum allowed time interval is 30 days
deviceId	YES	String	Devices ID
params	YES	Array of String	Array of tag code (XXXXX). The tag code could be specified more than 1 parameters by comma (,)

TIP

The parameters of the device depends on device type and device model. Please see detail in IoT Data Dictionary.

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter	Type	Description
deviceId	String	Devices ID
deviceName	String	Device name (XXXXXYYYZZZZ)
deviceType	String	Device type (YYY)
siteId	String	Site ID
count	Number	The count of the raw data in the requested period time.
data.DCOST	Number	Modbus's status code.
data.publishTimestamp	datetime	The UTC datetime of the publish timestamp from the device
data.params	double	The tag code or parameter's values as requested

{
    "data": {
        "deviceId": "60d42638d9cd632d3cc01660",
        "deviceName": "DEVICE_NAME",
        "deviceType": "DEVICE_TYPE",
        "siteId": "60d42357d9cd632d3cc01654",
        "count": 2,
        "data": [
            {
                "DCOST": 0,
                "publishTimestamp": "2021-08-28T00:20:00.000Z",
                "PACTO": 0.979478698730469,
                "ENETO": 12089.609375
            },
            ...
        ]
    }
}

Example

As the response above, we have got active power (PACTO) and total energy (ENETO) on the local timestamp "2021-08-28T07:20:00.000Z" of the device "DEVICE_NAME"

# The Lasted Data

This endpoint retrieves the lasted data of the device that the API token owner has access.

# HTTP Request

GET {url}/data/latest?deviceId={device_ids}&params={params}

# Request Headers

Key	Value
x-language	en
Authorization	Bearer `{YOUR_API_TOKEN_HERE}`

# Request Params

Parameter	Required	Type	Description
deviceIds	YES	Array of String	Array of Devices ID The device ID could be specified more than 1 device by comma (,)
params	YES	Array of String	Array of tag code (XXXXX). The tag code could be specified more than 1 parameters by comma (,)

TIP

The parameters of the device depends on device type and device model. Please see detail in IoT Data Dictionary.

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter	Type	Description
deviceId	String	Devices ID
lastDataAt	datetime	The UTC datetime of the lasted data.
params	double	The tag code or parameter's values as requested

{
    "data": {
        "lastest": [
            {
                "deviceId": "60d42620d9cd632d3cc0165f",
                "lastDataAt": "2021-08-28T10:15:00.000Z",
                "VPHSA": 230.02,
                "PACTO": 1.155,
                "ENETO": 2751.3798828125
            },
            {
                "deviceId": "60d42638d9cd632d3cc01660",
                "lastDataAt": "2021-08-28T10:15:00.000Z",
                "VPHSA": 227.152297973633,
                "PACTO": 16.610076171875,
                "ENETO": 12214.9189453125
            }
        ]
    }
}

Example

As the response above, we have got the lasted voltage phase A (VPHSA),the active power (PACTO) and the total energy (ENETO) on the local timestamp "2021-08-28T17:15:00.000Z" of the device "DEVICE_NAME1" and "DEVICE_NAME2".

# The Average Data 15 Minutes

rawdata15min

This endpoint retrieves the average data 15 Minutes of the device that the API token owner has access and supported measurement sets of devices.

# HTTP Request

GET {url}/data/average/quarter?startTime={startTime}&endTime={endTime}&deviceIds={device_ids}&params={params}

# Request Headers

Key	Value
x-language	en
Authorization	Bearer `{YOUR_API_TOKEN_HERE}`

# Request Params

Parameter	Required	Type	Description
startTime	YES	datetime	Initial DateTime (UTC) for collecting the data
endTime	NO	datetime	Final DateTime (UTC) for collecting the data. The maximum allowed time interval is 30 days
deviceId	YES	String	Devices ID
params	YES	Array of String	Array of tag code (XXXXX). The tag code could be specified more than 1 parameters by comma (,)
merge	NO	Number	If you need to average per 15 minutes from all devices, please specified 1

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter	Type	Description
count	Number	The count of the raw data in the requested period time.
data.date	datetime	The UTC datetime of the publish timestamp (average 15 minutes) from the device or summarized devices
data.params	double	The tag code or Average value 15 minutes's parameters as requested

{
    "data": {
        "count": 5,
        "data": [
            {
                "PACTO": 1.4197777777777778,
                "VLIAB": 402.3740740740741,
                "VPHSA": 230.97407407407408,
                "date": "2021-10-02T00:00:00.000Z",
                "deviceId": "6131c0c9c9dc13b026d7bfc2"
            },
            ...
        ]
    }
}

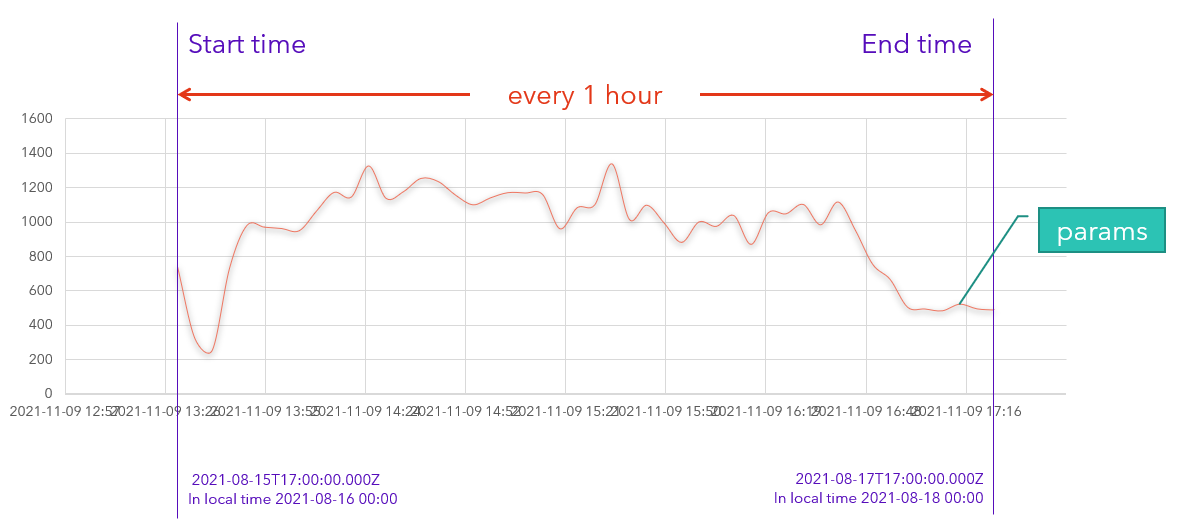

# The Average Data 1 Hour

rawdata1hour

This endpoint retrieves the hourly average data of the device that the api token owner has access. Supported measurement sets of a device.

# HTTP Request

GET {url}/data/average/hour?startTime={startTime}&endTime={endTime}&deviceIds={device_ids}&params={params}

# Request headers

KEY	VALUE
x-language	en
Authorization	Bearer `{YOUR_API_TOKEN_HERE}`

# Request params

Parameter	Required	Type	Description
startTime	YES	datetime	Initial DateTime (UTC) for collecting the data
endTime	NO	datetime	Final DateTime (UTC) for collecting the data. The maximum allowed time interval is 30 days.
deviceIds	YES	Array of String	Array of Devices's ids. The device's id could be specified more than 1 device by comma (,)
params	YES	Array of String	Array of tag code (XXXXX). The tag code could be specified more than 1 parameters by comma (,)
merge	NO	Number	If you need to average per 1 hour from all devices, please specified 1

TIP

The parameters of the device is depend on device type and device model. Please see detail in IoT Data Dictionary.

# Response

When successful, redirects to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter	Type	Description
count	Number	The count of the raw data in the requested period time.
deviceId	String	Devices's id.
data.date	datetime	UTC datetime of the publish timestamp (average 1 hour) from the device or summarized devices
data.params	double	the tag code or parameter's values as requested

{
    "data": {
        "average": [
            {
                "HUDTY": 60.4462037037037,
                "ABTMP": 34.60592592592592,
                "date": "2021-10-01T07:00:00.000Z",
                "deviceId": "612c849389362868151f62c5"
            },
            {
                "HUDTY": 54.03916666666667,
                "ABTMP": 36.954166666666666,
                "date": "2021-10-01T08:00:00.000Z",
                "deviceId": "612c849389362868151f62c5"
            },
            ...
        ]
    }
}

Example

As the response above, we got the hourly average humidity (HUDTY) and ambient temperature (ABTMP) of the device "DEVICE_NAME" in local timestamp "2021-10-01T14:00:00.000Z".

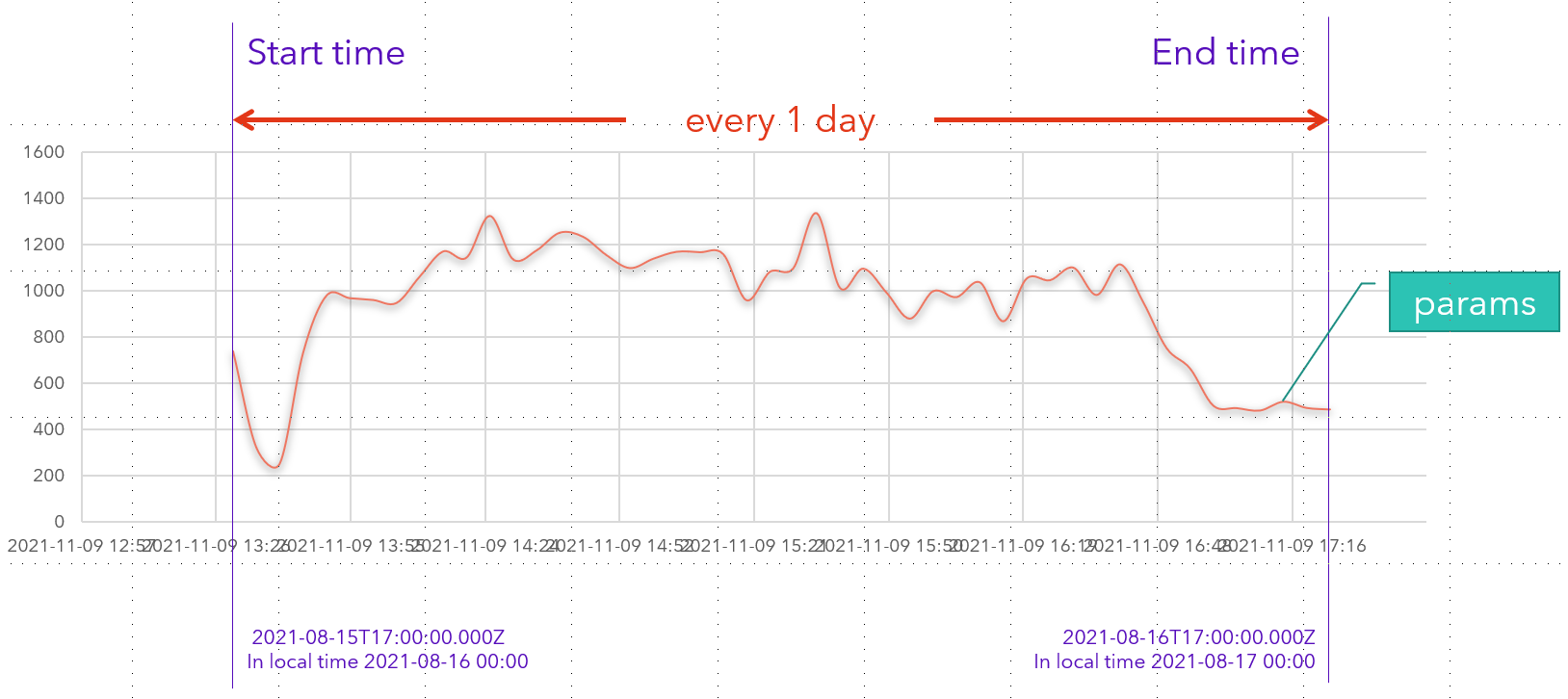

# The Average Data Daily

rawdata1hour

This endpoint retrieves the daily average data of the device that the api token owner has access. Supported measurement sets of a device.

# HTTP Request

GET {url}/data/average/daily?startTime={startTime}&endTime={endTime}&deviceIds={device_ids}&params={params}

# Request headers

KEY	VALUE
x-language	en
Authorization	Bearer `{YOUR_API_TOKEN_HERE}`

# Request params

Parameter	Required	Type	Description
startTime	YES	datetime	Initial DateTime (UTC) for collecting the data
endTime	NO	datetime	Final DateTime (UTC) for collecting the data. The maximum allowed time interval is 30 days.
deviceIds	YES	Array of String	Array of Devices's ids. The device's id could be specified more than 1 device by comma (,)
params	YES	Array of String	Array of tag code (XXXXX). The tag code could be specified more than 1 parameters by comma (,)
merge	NO	Number	If you need to average per 1 hour from all devices, please specified 1

TIP

The parameters of the device is depend on device type and device model. Please see detail in IoT Data Dictionary.

# Response

When successful, redirects to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter	Type	Description
count	Number	The count of the raw data in the requested period time.
deviceId	String	Devices's id.
data.date	datetime	UTC datetime of the publish timestamp (average 1 daily) from the device or summarized devices
data.params	double	the tag code or parameter's values as requested

{
    "data": {
        "average": [
            {
                "WISPE": 8.528472222222222,
                "date": "2023-09-11T17:00:00.000Z",
                "deviceId": "62fb8949495e487987410fa1"
            },
            {
                "WISPE": 7.8812500000000005,
                "date": "2023-09-12T17:00:00.000Z",
                "deviceId": "62fb8949495e487987410fa1"
            }
        ]
    }
}

Example

As the response above, we got the hourly average wind speed (WISPE) of the device "DEVICE_NAME" in local date "2023-09-12" and "2023-09-13".

# The Summary Data 15 Minutes

rawdata15min

This endpoint retrieves the summary data 15 Minutes of the device that the API token owner has access and supported measurement sets of devices.

# HTTP Request

GET {url}/data/sum/quarter?startTime={startTime}&endTime={endTime}&deviceIds={device_ids}&params={params}

# Request Headers

Key	Value
x-language	en
Authorization	Bearer `{YOUR_API_TOKEN_HERE}`

# Request Params

Parameter	Required	Type	Description
startTime	YES	datetime	Initial DateTime (UTC) for collecting the data
endTime	NO	datetime	Final DateTime (UTC) for collecting the data. The maximum allowed time interval is 30 days
deviceId	YES	String	Devices ID
params	YES	Array of String	Array of tag code (XXXXX). The tag code could be specified more than 1 parameters by comma (,)
merge	NO	Number	If you need to summarized per 15 minutes from all devices, please specified 1

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter	Type	Description
count	Number	The count of the raw data in the requested period time.
data.date	datetime	The UTC datetime of the publish timestamp (average 15 minutes) from the device or summarized devices
data.params	double	The tag code or summarized value 15 minutes's parameters as requested

{
    "data": {
        "sum": [
            {
                "RAINF": 105.56,
                "date": "2021-10-01T07:00:00.000Z",
                "deviceId": "612c849389362868151f62c5"
            },
            s...
        ]
    }
}

Example

As the response above, we got the summary rainfall (RAINF) 15 Minutes of the device "DEVICE_NAME" in local timestamp "2021-10-01T14:00:00.000Z".

# The Summary Data 1 Hour

rawdata1hour

This endpoint retrieves the hourly summary data of the device that the api token owner has access. Supported measurement sets of a device.

# HTTP Request

GET {url}/data/sum/hour?startTime={startTime}&endTime={endTime}&deviceIds={device_ids}&params={params}

# Request Headers

Key	Value
x-language	en
Authorization	Bearer `{YOUR_API_TOKEN_HERE}`

# Request Params

Parameter	Required	Type	Description
startTime	YES	datetime	Initial DateTime (UTC) for collecting the data
endTime	NO	datetime	Final DateTime (UTC) for collecting the data. The maximum allowed time interval is 30 days
deviceId	YES	String	Devices ID
params	YES	Array of String	Array of tag code (XXXXX). The tag code could be specified more than 1 parameters by comma (,)
merge	NO	Number	If you need to summarized per 1 hour from all devices, please specified 1

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter	Type	Description
count	Number	The count of the raw data in the requested period time.
data.date	datetime	The UTC datetime of the publish timestamp (average 15 minutes) from the device or summarized devices
data.params	double	The tag code or summarized value 1 hour's parameters as requested

{
    "data": {
        "sum": [
            {
                "RAINF": 415.271111111111,
                "date": "2021-10-01T07:00:00.000Z",
                "deviceId": "612c849389362868151f62c5"
            },
            ...
        ]
    }
}

Example

As the response above, we got the hourly rainfall (RAINF) of the device "DEVICE_NAME" in local timestamp "2021-10-01T14:00:00.000Z".

# The Thailand Public Holidays

The Thailand Public Holidays are depend on MEA and PEA confirmation that day is off-peak day which affect to TOU rate.

# HTTP Request

`GET {url}/holiday?startTime={startTime}&endTime={endTime}

# Request Headers

Key	Value
x-language	en
Authorization	Bearer `{YOUR_API_TOKEN_HERE}`

# Request Params

Parameter	Required	Type	Description
startTime	YES	datetime	Initial DateTime (UTC) for your period
endTime	NO	datetime	Final DateTime (UTC) for your period

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter	Type	Description
count	Number	The count of the raw data in the requested period time.
data.date	datetime	The UTC datetime of the publish timestamp (average 15 minutes) from the device or summarized devices
data.params	double	The tag code or summarized value 1 hour's parameters as requested

{
    "data": {
        "holiday": [
            {
                "date": "2023-03-05T17:00:00.000Z",
                "description": "วันมาฆบูชา"
            },
            {
                "date": "2023-04-05T17:00:00.000Z",
                "description": "วันพระบาทสมเด็จพระพุทธยอดฟ้าจุฬาโลกมหาราช และวันที่ระลึกมหาจักรีบรมราชวงศ์"
            },
            {
                "date": "2023-04-12T17:00:00.000Z",
                "description": "วันสงกรานต์"
            }
        ]
    }
}

Example

As the response above, we got the holiday "วันมาฆบูชา" in local timestamp "2023-03-06".
