# Devices

# IoT Device Name and Device Type Standard

# Device Name

"XXXXXYYYZZZZ"

  • XXXXX - Project Code, 5 characters representing the Project code standard from Oracle (Account)
  • YYY - Device Type, 3 characters representing the device type standard
  • ZZZZ - Device No, 4 characters representing the device no in the project

Project Code (XXXXX)

  1. BXXXX - Solar Project Code from Oracle
  2. SXXXX - Smart City Project
  3. EXXXX - EMS Project
  4. MXXXX - EV Project
  5. CXXXX - Ecoserve Project
  6. WXXXX - Wind project

Device Type (YYY)

  1. IPC - Gateway (IoT Edge)
  2. INV - Inverter
  3. SML - Smart Logger
  4. MET - Meter
    • BME - Billing Meter
    • GME - Grid Meter
    • LME - Load Meter 1 or 3 phase
  5. EMI - Weather Station
  6. SEN - Sensor
    • PRE - Pressure Transmitter
    • RTD - Temperature Transmitter
    • FLM - Flow Meter
  7. SER - Server
  8. CAM - CCTV
  9. PUA - Publice Address Speaker
    • MIC - Microphone
    • SOS - SOS
  10. UPS - Uninterruptible Power Supply
  11. MCH - Machine
    • ACO - Air Compressor
    • ADR - Air Dryer
    • PUM - Pump
    • CHI - Chiller
    • CTW - Cooling Tower
    • HEX - Heat Exchanger
    • TRM - Transformer
    • ACB - Air Circuit Breaker

Remark : Device type will be updated in the future

Device No (ZZZZ)

  1. Start running number from 0001

For Example Device Name: B9020INV0008

B9020 - Solar Project code at Site INV - Inverter 0008 - Inverter no.8

TIP

Please see all Iot devices in NiXT Care (opens new window) or request from IoT Team.

# Devices - List

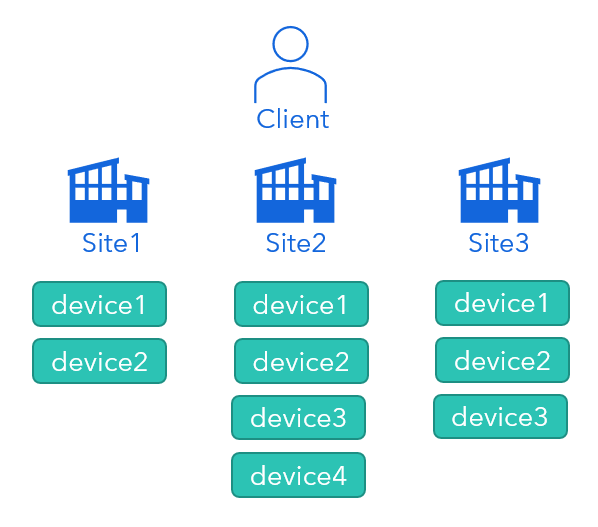

site

This endpoint retrieves all devices of Project owner permission that the API token owner has access.

# HTTP Request

GET {url}/devices

# Request Headers

Key Value
x-language en
Authorization Bearer {YOUR_API_TOKEN_HERE}

# Request Params

Parameter Required Type Description
siteId NO String Site ID

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter Type Description
count Number The count of device in the client
_id String Devices ID
deviceName String Device name (XXXXXYYYZZZZ)
deviceType String Device type (YYY)
siteId String Site ID
{
    "data": {
        "count": 9,
        "devices": [
            {
                "_id": "60d425e1d9cd632d3cc01657",
                "deviceName": "DEVICE_NAME",
                "deviceType": "DEVICE_TYPE",
                "siteId": "60d42357d9cd632d3cc01654"
            },
            ...
        ]
    }
}

When there is a failure, redirects to the assigned reirect_uri with the parameters below attached.

TIP

DEVICE_NAME and DEVICE_TYPE will be specified by IoT Team. Please see detail in IoT Device Name and Device Type Standard

WARNING

The Site ID in the specified request ID does not match the site ID in database. Data is not found.

# Device - Get Device Info

This endpoint retrieves a specific id of the site. Detailed information about a device.

# HTTP Request

GET {url}/devices/:deviceId

# Request Headers

Key Value
x-language en
Authorization Bearer {YOUR_API_TOKEN_HERE}

# Request Params

Parameter Required Type Description
deviceId YES String Devices ID

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter Type Description
_id String Devices ID
deviceName String Device name (XXXXXYYYZZZZ)
deviceType String Device type (YYY)
siteId String Site ID
lastDataAt datetime The UTC datetime of the lasted data
lastNormalDcostAt datetime The lasted UTC datetime which devices is normal
{
    "data": {
        "_id": "60abbf7f4592e1ae8017b594",
        "deviceName": "DEVICE_NAME",
        "deviceType": "DEVICE_TYPE",
        "siteId": {
            "_id": "60abbe3f4592e1ae8017b58f",
            "siteName": "YOUR_SITE_NAME"
        },
        "lastDataAt": "2021-08-28T08:55:00.000Z",
        "lastNormalDcostAt": "2021-08-28T08:55:00.000Z"
    }
}

TIP

Datetime is at UTC time and use the following formats for date-time:

yyyy-mm-ddThh:mm:ss.000Z for example, 2021-08-15T17:30:00.000Z

TIP

DEVICE_NAME and DEVICE_TYPE will be specified by IoT team. Please see detail in IoT Device Name and Device Type Standard

WARNING

The Site ID in the specified request ID does not match the site ID in database. Data is not found.

# Direct Command to Device

Directly command to device via the direct method API.

# HTTP Request

POST {url}/devices/:deviceId/call/:method?timeout=5

# Request Headers

Key Value
x-language en
Authorization Bearer {YOUR_API_TOKEN_HERE}

# Request Params

Parameter Required Type Description
deviceId YES String Devices ID
method YES String Direct method command

Determine command in method on Params and fill detail of the command on Body. The direct method 's command is depend on device model from manufacturer which will be developed by IoT Team as per requested. Pleae see the directly command method to devices which is already release as below;

Release

  • Command to real-time live steaming from CCTV
  • Command to devices of the public announcement and SOS

# Response

When successfully redirect to the assigned redirect_uri or posts according to the form with the parameters below attached.

Parameter Type Description
status Number HTTP Response Status Codes (opens new window)
payload String Response or feedback from command
{
    "data": {
        "status": 200,
        "payload": {
            "Response's detail"
        }
    }
}
